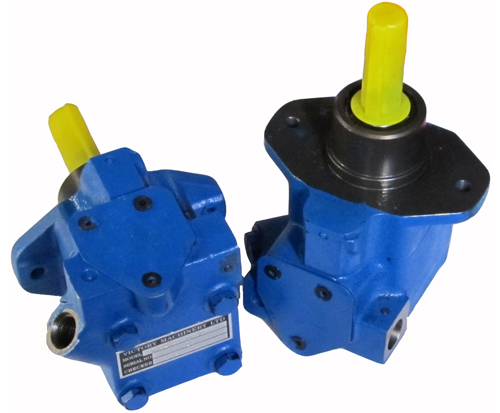

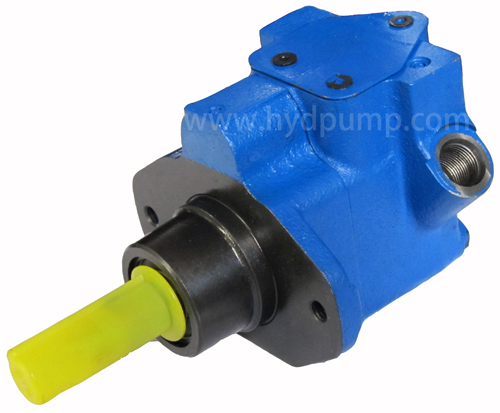

Vickers VTM42 Power Steering Pump & Cartridge
|
|
We offers a complete line of economical high performance fixed displacement Vickers VTM hydraulic vane pumps providing flows up to 25 US GPM and pressures to 2000 psi for mobile and marine power steering applications. The integral flow control and relief valve eliminate the need for external valve and combined with the top mounted reservoir, you have a compact power package. Units can be supplied with a manifold assembly to be piped to an external tank or assembled on existing installations. Units are supplied with a threaded shaft and a heavy duty front bearing for gear and pulley drive assemblies.
High Efficiency
Optimum running clearances and hydraulic balance provide sustained high efficiency throughout pump life.
Hydraulic Balance
Vickers’ design eliminates pressure-induced bearing loads to provide longer life and reduced maintenance.
Integral Valves
Flow control and relief eliminate the need for separate valves. Vickers pumps supply, in one package, a complete power source for steering.
Technical Data power steering hydraulic Eaton Vickers VTM42 pump
Table of values (theoretical values, without efficiency and tolerances; values rounded)
Vickers pump |
DELIVERY USgpm @ 1200 R/MIN & 100 PSI) |
DISP.
in 3/ r3 (cm / r)
|
MAX. SPEED - RPM |
MAX.
PRESSURE PSI (BAR) |
APPROX.
WEIGHT
lbs. (kg.) |
@100 PSI (7 BAR) |
@1500 PSI (100 BAR) |
@2000 PSI (140 BAR) |
Vickers VTM42 |
1 |
0.21 (3.4) |
7000 |
5000 |
4250 |
2000 (140)
|
14 (6.4)
|
1.5 |
0.31 (5.1) |
7000 |
4500 |
4000 |
2 |
0.38 (6.2) |
7000 |
4200 |
3800 |
4 |
0.79 (12.9) |
7000 |
2800 |
2800 |
5 |
0.96 (15.7) |
6000 |
2600 |
2300 |
6 |
1.18 (19.3) |
5000 |
2500 |
2000 |
Vickers VTM power steering pump |
VTM42403020F07R114 |
VTM42403520MFR114 |
VTM42404515NOR114S54 |
VTM42154015N0R114 |
VTM42607515NOR114 |
VTM42152007N0R114 |
VTM42406520F11R114 |
VTM42606012N0R114 |
VTM42404017N0R114 |
VTM42607515NOL114 |
VTM42207505N0R114 |
VTM42504015MAR114 |
VTM42407515F11R114 |
VTM42402512MER114 |
VTM42607515NOR114 |
VTM42152020N0R114 |
VTM42606012F11R114 |
VTM42403520N0R114 |
VTM42201512MEL114 |
VTM42402015MER114 |
VTM42202512NOR114 |
VTM42106012N0A114 |
VTM42607520F11R114 |
VTM42606515MFR114 |
VTM42605015N0R114 |
VTM42201507MER114 |
VTM42106012N0R114 |
VTM42607515F11R114 |
VTM42202015NOR114 |
VTM42605515N0L114 |
VTM42152015MAR114 |
VTM42153007N0R114 |
VTM42606520F11R114 |
VTM42505512N0R114 |
VTM42605515NOR114 |
VTM42A403003MFR38 |
VTM42503020N0R114 |
VTM42605015F11L114 |
VTM42402017F07R114 |
VTM42504520MAL114 |
VTM42202015MJR114 |
VTM42207507NOL114 |
VTM42605015F11R114 |
VTM42402007NOR114 |
VTM42204010N0R114 |
VTM42403003MFR114 |
VTM42507510NOR114 |
VTM42403515F11L114 |
VTM42504020N0R114S |
VTM42404515MDL114 |
VTM42A403005MFR38 |
VTM42402517F11R114 |
VTM42605515F11R114 |
VTM42207520F11R114 |
VTM42406510MAR114 |
VTM42605020MER114 |
VTM42503512MER114 |
VTM42604515F11L114 |
VTM42107507N0R114 |
VTM42605015MAR114 |
VTM42403017MFR114 |
VTM42604512MER114 |
VTM42404517MDL114 |
VTM42403012F07R114 |
VTM42506512MER114 |
VTM42206010N0R114 |
VTM42606515MBL114 |
VTM42404517MDR114 |
VTM42201520N0R114 |
VTM42606510MAR114 |
VTM42603510NOR114 |
VTM42606515MBR114 |
VTM42504515N0L114 |
VTM42504512MFR114 |
VTM42101505MBR114 |
VTM42607520MEA114 |
VTM42503512N0R114 |
VTM42504515NOR114 |
VTM42151517MER114 |
VTM42502520MER114 |
VTM42607520MEL114 |
VTM42603015NOR114 |
VTM42403510MDR114 |
VTM42506512N0R114 |
VTM42206505MAR114 |
VTM42607520MER114 |
VTM42606520MER114 |
VTM42405012F11R114 |
VTM42401517MER114 |
VTM42403015NOR14 |
VTM42606515MAL114 |
VTM42404015F11R114 |
VTM42407505N0R114 |
VTM42405020F11R114 |
VTM42605007N0R114 |
VTM42407515N0L114 |
VTM42502020MER114 |
VTM42404015N0L114 |
VTM42202515MFR114 |
VTM42207515NOR114 |
VTM42407515NOR114 |
VTM42504512NOR114 |
VTM42404015N0R114 |
VTM42101510F11R114 |
VTM42206012N0R114 |
VTM42503520MER114 |
VTM42404015MBL114 |
VTM42504015F11R114 |
VTM42503515N0L114 |
VTM42504010N0L114 |
VTM42207515MDR114 |
VTM42404015MBR114 |
VTM42606515F11R114 |
VTM42101515N0R114 |
VTM42504010NOR114 |
VTM42403510NOR114 |
VTM42404510NOR114S |
VTM42202015F11R114 |
VTM42101515F11L114 |
VTM42402010MEL114 |
VTM42403010F07R114 |
VTM42505512NOR114S |
VTM42404012NOR114 |
VTM42605515MER114 |
VTM42504020N0R114 |
VTM42607520N0R114 |
VTM42201510N0R114 |
VTM42607517N0R114 |
VTM42207520NO114 |
VTM42606515N0L114 |
VTM42402515F07R114 |
VTM42402517N0R114 |
VTM42606512N0R114 |
VTM42207520NOL114 |
VTM42606515NOR114 |
VTM42504520N0L114 |
VTM42504015N0L114 |
VTM42404015MAR114 |
VTM42607510NOR114 |
VTM42604515NOL114 |
VTM42504520N0R114 |
VTM42407510N0R114 |
VTM42606520NOR114 |
VTM42203520NOL114 |
VTM42604515NOR114 |
VTM42507520N0R114 |
VTM42203015F07R114 |
VTM42605020NOR114 |
VTM42505520NOR114 |
VTM42157515NOR114 |
VTM42503020MFR114 |
VTM42504015MJL114S4 |
VTM42505020N0R114 |
VTM42403510MER114 |
VTM42403520MFL114 |
VTM42403012MAR114 |
VTM42404510NOR114S |
VTM42606007N0R114 |
VTM42403515N0R114 |
VTM42106007NOR114 |
VTM42403015MAR114 |
VTM42405012N0R114 |
VTM42504510F11R114 |
VTM42506520N0R114 |
VTM42206020NOR114 |
VTM42404510NOR114 |
VTM42201512N0R114 |
VTM42402510F11R114 |
VTM42206007N0R114 |
VTM42403007F07R114 |
VTM42407520N0R114 |
VTM42606510F11R114 |
VTM42101505MER114 |
VTM42206015MFR114 |
VTM42502020N0R114 |
VTM42406520NOR114 |
VTM42402012MJR514 |
VTM42403010NOR114 |
VTM42206015MFR114 |
VTM42504512MAL114 |
VTM42604515MER114 |
VTM42607510MER114 |
VTM42604010F11R114 |
VTM42406010N0R114 |
VTM42506507F11A114 |
VTM42401510N0A114 |
VTM4250401207L114 |
VTM42403015F07R114 |
VTM42103510MER114 |
VTM42506507F11L114 |
VTM42401510N0R114 |
VTM42607507N0R114 |
VTM42403015F07R114 |
VTM42101510N0R114 |
VTM42606017MAR114 |
VTM42606515NOR1 14 |
VTM42403510NOR1 14 |
VTM42404015MEL114 |
VTM42404015MER114 |
VTM42503515MAR114 |
