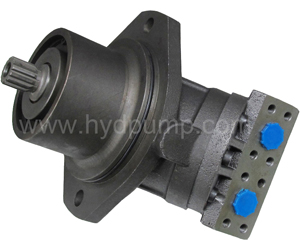

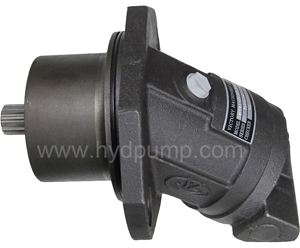

Rexroth A2FE Fixed Displacement Plug-in Hydraulic Piston Motor

Fixed Displacement Brueninghaus Hydromatik Rexroth A2FE Motor
Series 6, axial tapered piston, bent axis design for mounting in mechanical gearboxes
Nominal Pressure up to 400 bar Peak Pressure up to 450 bar
A2FE28, A2FE32, A2FE45, A2FE56, A2FE63, A2FE80, A2FE90, A2FE107, A2FE125, A2FE160, A2FE180, A2FE250, A2FE355


A4VSO piston pump Rexroth A4VSO pump


The A2FE fixed plug-in motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits
– Far-reaching integration in mechanical gearbox due to recessed mounting flange located in the center of the case
– The output speed is dependent on the flow of the pump and the displacement of the motor.
– The output torque increases with the pressure differential between the high-pressure and the low-pressure side.
– Small dimensions.
– High total efficiency.
– Complete unit, ready-assembled and tested.
– Easy to install, simply plug into the mechanical gearbox.
– No configuration specifications to be observed when installing.

Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)

Rexroth A2FE motor

A2FE28

A2FE32

A2FE45

A2FE56

A2FE63

A2FE80



Displacement

Vg

cm3

28.1

32

45.6

56.1

63

80.4



Speed maximum

nnom

rpm

6300

6300

5600

5000

5000

4500



nmax2)

rpm

6900

6900

6200

5500

5500

5000



Input flow Vg

qV

L/min

177

202

255

281

315

362



Torque at Vg and

Dp = 350 bar

T

Nm

157

178

254

313

351



Dp = 400 bar

T

Nm

179

204

290

357

401



Rotary stiffness

c

kNm/ rad

2.93

3.12

4.18

5.94

6.25

8.73



Moment of inertia

JGR

 kgm2

0.0012

0.0012

0.0024

0.0042

0.0042

0.0072



Maximum angular

a

rad/s2

6500

6500

14600

7500

7500

6000



Case volume

V

 L

0.2

0.2

0.33

0.45

0.45

0.55



Mass (approx.)

m

kg

10.5

10.5

15

18

19

23

Rexroth A2FE motor

A2FE90

A2FE107

A2FE125

A2FE160

A2FE180

A2FE250

A2FE355

Displacement

Vg

cm3

90

106.7

125

160.4

180

250

355

Speed maximum

nnom

rpm

4500

4000

4000

3600

3600

2700

2240

nmax2)

rpm

5000

4400

4400

4000

4000

–

–

Input flow

qV

L/min

405

427

500

577

648

675

795

Torque at Vg

Dp = 350 bar

T

501

594

696

893

1003

1393

1978

Dp = 400 bar

T

573

679

796

1021

1146

–

–

Rotary stiffness

c

kNm/rad

9.14

11.2

11.9

17.4

18.2

73.1

96.1

Moment of inertia

JGR

kgm2

0.0072

0.0116

0.0116

0.022

0.022

0.061

0.102

Maximum angular

a

rad/s2

6000

4500

4500

3500

3500

10000

8300

Case volume

V

L

0.55

0.8

0.8

1.1

1.1

2.5

3.5

Mass (approx.)

m

kg

25

34

36

47

48

82

110

Hydraulic fluid
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable hydraulic fluids) and RE 90222 (HFD hydraulic fluids) and RE 90223 (HFA, HFB, HFC hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions. The plug-in motor A2FE is not suitable for operation with HFA hydraulic fluid. If HFB, HFC or HFD or environmentally acceptable hydraulic fluids are used, the limitations regarding technical data or other seals must be observed.
Details regarding the choice of hydraulic fluid
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit, the circuit temperature, in an open circuit, the reservoir temperature. The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range (νopt), see shaded area of the selection diagram. We recommended that the higher viscosity class be selected in each case. Example: At an ambient temperature of X °C, an operating temperature of 60 °C is set in the circuit. In the optimum operating viscosity range (νopt., shaded area) this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68.
Note: The case drain temperature, which is affected by pressure and speed, can be higher than the circuit temperature or reservoir temperature. At no point of the component may the temperature be higher than 115 °C. The temperature difference specified below is to be taken into account when determining the viscosity in the bearing. If the above conditions cannot be maintained due to extreme operating parameters, we recommend the use of a flushing and boost pressure valve.
Filtration of the hydraulic fluid
Finer filtration improves the cleanliness level of the hydraulic fluid, which increases the service life of the axial piston unit. To ensure the functional reliability of the axial piston unit, a gravimetric analysis of the hydraulic fluid is necessary to determine the amount of solid contaminant and to determine the cleanliness level according to ISO 4406. A cleanliness level of at least 20/18/15 is to be maintained.
Shaft seal
Permissible pressure loading the service life of the shaft seal is influenced by the speed of the axial piston unit and the case drain pressure (case pressure). The mean differential pressure of 2 bar between the case and the ambient pressure may not be enduringly exceeded at normal operating temperature. For a higher differential pressure at reduced speed, see diagram. Momentary pressure spikes (t < 0.1 s) of up to 10 bar are permitted. The service life of the shaft seal decreases with an increase in the frequency of pressure spikes. The case pressure must be equal to or higher than the ambient pressure.

Details model of Rexroth A2FE motor
　

A2FE355/60W-VZM010

R902065907    A2FE90/61W-VZL191J-K

R902084416    A2FE125/61W-VAL171-K

A2FE355/60W-VZM017

R902065989    A2FE56/61W-VZL027-S

R902084428    A2FE125/61W-VAL027-S

A2FE355/60W-VZM020

R902067562    A2FE80/61W-VAL181-K

R902086572    A2FE56/61W-VAL100D-S *G*

A2FE355/60W-VZM0100

R902067618    A2FE56/61W-VZL192J-SK

R902065853    A2FE80/61W-VAL181-K

A2FE250/60W-VZM010

R902065790    A2FE45/61W-VZL181-K

R902065856    A2FE107/61W-VZL171-SK

A2FE250/60W-VZM017

R902067665    A2FE90/61W-VAL181-K

R902065772    A2FE90/61W-VZL192J-K

A2FE250/60W-VZM020

R902065642    A2FE63/61W-VAL100-S

R902033035    A2FE63/61W-VAL181-K

A2FE250/60W-VZM0100

R902065733    A2FE180/61W-VAL181-K

R902065770    A2FE90/61W-VZL190J

R909437443  A2FE63/61W-VAL100

R902137874  A2FE125/61W-VZL100 S

R902155643  A2FE90/61W-VAL106

R909437482  A2FE56/61W-VAL100

R902137875  A2FE125/61W-VZL100 S

R902155644  A2FE90/61W-VAL100

R909437748  A2FE45/61W-VZL100

R902137876  A2FE125/61W-VZL100 S

R902155652  A2FE160/61W-VZL100

R909416951  A2FE90/61W-VAL100

R902137877  A2FE125/61W-VZL100 S

R902155725  A2FE180/61W-VZL100 S

R909418424  A2FE32/61W-VAL100

R902137880  A2FE125/61W-VZL100 S

R902155745  A2FE125/61W-VZL192J S

R909418426  A2FE125/61W-VAL100

R902137898  A2FE90/61W-VZL100 S

R902155746  A2FE90/61W-VAL181

R909419560  A2FE107/61W-VAL100

R902137936  A2FE107/61W-VZL181

R902155754  A2FE56/61W-VZL027 S

R909419867  A2FE80/61W-VAL100

R902138009  A2FE125/61W-VZL100 S

R902155771  A2FE125/61W-VZL100F S

R909419990  A2FE28/61W-VAL100

R902138047  A2FE90/61W-VAL106

R902155776  A2FE107/61W-VZL027F S

R909421394  A2FE180/61W-VAL100

R902138108  A2FE90/61W-VAL020 S

R902155781  A2FE125/61W-VZL192J S

R902065772  A2FE90/61W-VZL192J S

R902138118  A2FE80/61W-VAL020 S

R902155786  A2FE160/61W-VZL027 S

R902078992  A2FE107 61L VXLXX0 S

R902138132  A2FE80/61W-VAL020F S

R902155788  A2FE80/61W-VAL181

R902137505  A2FE125/61W-VAL100 S

R902138471  A2FE80/61W-VAL100

R902155789  A2FE90/61W-VAL181

R902137513  A2FE90/61W-VZL106 S

R902138483  A2FE56/61W-VZL100F S

R902155797  A2FE45/61W-VZL100

R902137519  A2FE90/61W-VAL027 S

R902138495  A2FE90/61W-VZL100F S

R902155829  A2FE160/61W-VZL181

R902137520  A2FE80/61W-VAL106

R902139830  A2FE45/61W-VZL181

R902155830  A2FE63/61W-VZL027 S

R902137545  A2FE180/61W-VZL100 S

R902139973  A2FE56/61W-VZL181

R902155831  A2FE107/61W-VZL027F S

R902137582  A2FE107/61W-VZL027 S

R902149472  A2FE80/61W-VAL100

R902155879  A2FE160/61W-VZL181

R902137596  A2FE125/61W-VAL027 S

R902153515  A2FE28/61W-VAL100

R902155925  A2FE180/61W-VAL181

R902137627  A2FE125/61W-VAL100

R902153605  A2FE160/61W-VZL100F

R902156026  A2FE90/61W-VZL027 S

R902137649  A2FE90/61W-VAL100

R902155017  A2FE180/61W-VZL181 S

R902156126  A2FE45/61W-VZL106

R902137664  A2FE125/61W-VAL100

R902155522  A2FE160/61W-VZL181

R902156283  A2FE107/61W-VZL100

R902137803  A2FE107/61W-VZL010

R902155555  A2FE125/61W-VAL106F

R902156332  A2FE63/61W-VZL106 S

R902137828  A2FE90/61W-VAL100

R902155583  A2FE80/61W-VAL192J

R902156342  A2FE180/61W-VAL027 S

R902137829  A2FE90/61W-VAL100

R902155593  A2FE80/61W-VAL100F

R902158626  A2FE180/61W-VAL100

R902137831  A2FE90/61W-VAL100

R902155621  A2FE125/61W-VZL181F S

R902158629  A2FE32/61W-VAL100

R902137836  A2FE90/61W-VAL100

R902155629  A2FE80/61W-VAL027 S

R902160009  A2FE45/61W-VZL100

R902137837  A2FE90/61W-VAL100

R902137854  A2FE80/61W-VAL100

R902160034  A2FE32/61W-VAL100

R902137842  A2FE125/61W-VAL100

R902137856  A2FE80/61W-VAL100

R902160513  A2FE63/61W-VZL106 S

R902137844  A2FE125/61W-VZL100 S

R902137863  A2FE107/61W-VZL100

R902160555  A2FE125/61W-VZL100 S

R902137846  A2FE125/61W-VAL100

R902137865  A2FE107/61W-VZL100

R902160649  A2FE125/61W-VZL100 S

R902137850  A2FE107/61W-VAL100

R902137866  A2FE107/61W-VZL100

R902160744  A2FE56/61W-VZL100 S

R902137851  A2FE80/61W-VAL100

R902137870  A2FE107/61W-VZL100

R902160757  A2FE63/61W-VZL100 S

R902137852  A2FE80/61W-VAL100

R902137872  A2FE107/61W-VZL100

R902160765  A2FE63/61W-VZL100 S

R902137853  A2FE80/61W-VAL100

R902160959  A2FE63/61W-VAL100 S

R902160774  A2FE56/61W-VZL100

R902160943  A2FE80/61W-VAL181

R902160971  A2FE63/61W-NZL201 S

R902160800  A2FE56/61W-VZL100

R902160956  A2FE107/61W-VZL100

R902160982  A2FE56/61W-VZL181

R902160897  A2FE90/61W-VAL020F S

R902404657  AA2FE250/60W-VZM010D

R902036623    A2FE45/61W-VZL100D-SK

R902160938  A2FE80/61W-VZL100

R902418396    AL A2FE250/60W-VZM010

R902036652    A2FE180/61W-VZL181-K

R902067679    A2FE45/61W-VZL181-K

R910967545    A A2FE250/60W-VZM010

R902036666    A2FE80/61W-VZL181-K

R902067738    A2FE107/61W-XAL100J-S

R910983204    A A2FE250/60W-VZM027

R902036678    A2FE56/61W-VZL020D-S u*G*

R902067754    A2FE90/61W-VZL181-K

R902009546    A2FE56/61W-VZL192J-K

R902036680    A2FE56/61W-VZL020D-SK *Z*

R902067836    A2FE45/61W-VZL181-K

R902009866    A2FE80/61W-NZL181-K *G*

R902036701    A2FE63/61W-VAL100-S

R902067848    A2FE80/61W-VAL181-K

R902009974    A2FE90/61W-NAL300 *G*

R902038566    A2FE45/61W-VZL181-K *G*

R902067880    A2FE63/61W-VZL027D

R902011591    A2FE107/61W-NZL181-K *G*

R902038575    A2FE32/61W-VAL181-K *G*

R902067882    A2FE63/61W-VZL027D-K

R902011592    A2FE107/61W-NZL181-K *G*

R902038581    A2FE45/61W-VAL181-K *G*

R902067916    A2FE45/61W-VZL106-S

R902011751    A2FE125/61W-NZL181-K *G*

R902038592    A2FE107/61W-VZL181-K *G*

R902068528    A2FE160/61W-VZL010

R902011752    A2FE180/61W-NZL181-K *G*

R902038619    A2FE45/61W-VZL020D-S

R902068664    A2FE80/61L-VXLXX0-S *G*

R902011791    A2FE160/61W-VZL027-S *G*

R902038621    A2FE45/61W-VZL020D-SK

R902068677    A2FE45/61L-VXLXX0-S

R902011837    A2FE160/61W-VZL100-S *G*

R902038722    A2FE125/61W-VZL171-K

R902068744    A2FE125/61W-VZL171-K

R902011916    A2FE28/61W-VAL192J-SK

R902038748    A2FE90/61W-VZL181-K *G*

R902068802    A2FE45/61L-VXLXX0-S

R902014033    A2FE180/61W-XAL100-S *G*

R902038852    A2FE45/61W-VZL010J

R902068804    A2FE80/61L-VXLXX0-S *G*

R902014082    A2FE56/61W-VZL191J-K

R902038941    A2FE80/61W-VZL190J

R902068858    A2FE90/61W-VZL181-K

R902014100    A2FE80/61W-VAL192J-K

R902038943    A2FE80/61W-VZL192J-K

R902068863    A2FE107/61W-VZL181-K

R902014124    A2FE45/61W-VZL190J-S *G*

R902040005    A2FE63/61W-VZL181-K

R902070598    A2FE63/61W-VZL100-S

R902014126    A2FE45/61W-VZL191J-SK *G*

R902042461    A2FE56/61W-VZL020D-SK

R902070693    A2FE56/61W-VZL106-S

R902014127    A2FE56/61W-VZL190J-S *G*

R902043641    A2FE28/61W-VZL106

R902070712    A2FE107/61W-VAL100-S

R902014129    A2FE56/61W-VZL191J-SK *G*

R902043682    A2FE160/61W-VZL181-K

R902070715    A2FE180/61W-VAL100-S

R902014151    A2FE180/61W-XAL027-S

R902043857    A2FE45/61W-VAL106-S

R902073764    A2FE125/61W-VZL181-K

R902014185    A2FE90/61W-VZL106

R902045136    A2FE180/61W-VAL180-S

R902073768    A2FE107/61W-VZL181-K

R902014263    A2FE90/61W-VAL192J-SK *G*

R902045138    A2FE180/61W-VAL181-SK

R902073862    A2FE107/61W-VZL181-K

R902014440    A2FE90/61W-NAL300-J

R902047059    A2FE125/61W-VZL181-K

R902073937    A2FE80/61W-VAL106F

R902016526    A2FE80/61W-VAL180-S

R902047083    A2FE45/61W-VZL100J

R902073939    A2FE80/61W-VAL106F-K

R902016528    A2FE80/61W-VAL181-SK

R902047167    A2FE160/61W-VAL100-S

R902075008    A2FE125/61W-VZL181-K

R902016565    A2FE125/61W-NZL191 *G*

R902047252    A2FE28/61W-VAL191J-K

R902075031    A2FE160/61W-VZL181-K

R902016736    A2FE45/61W-VZL106 *G*

R902047317    A2FE80/61W-VAL181-K

R902075033    A2FE63/61W-VZL181-K

R902016988    A2FE32/61W-VAL190J

R902047347    A2FE125/61W-VZL171-K *G*

R902075084    A2FE107/61W-VALXXX-S

R902016990    A2FE32/61W-VAL192J-K

R902047348    A2FE107/61W-VZL170J

R902075099    A2FE63/61W-VZL181-K

R902018171    A2FE45/61W-VZL190J-S

R902047350    A2FE107/61W-VZL172J-K

R902075185    A2FE80/61W-VAL181-K

R902018173    A2FE45/61W-VZL191J-SK

R902047442    A2FE45/61W-VZL181-K

R902075258    A2FE180/61W-VAL191J-K

R902018399    A2FE32/61W-VBL100

R902049045    A2FE107/61W-VZL027

R902075266    A2FE56/61W-VAL181-K

R902018419    A2FE56/61W-VZL027

R902049053    A2FE63/61W-VZL010D *G*

R902075278    A2FE80/61W-VAL100F

R902018421    A2FE90/61W-VAL027

R902049057    A2FE63/61W-VZL100-S

R902075280    A2FE80/61W-VAL100F-K

R902018423    A2FE80/61W-VAL106

R902050543    A2FE90/61W-VAL181-SK

R902077123    A2FE56/61W-VAL181-K

R902018425    A2FE56/61W-VZL181-K

R902050642    A2FE56/61W-VZL181-K

R902077143    A2FE125/61W-VZL181-K

R902018442    A2FE80/61W-VAL181-K

R902057490    A2FE160/61W-VAL100-S

R902077260    A2FE80/61W-VAL027-S

R902018486    A2FE107/61W-VZL181-K *G*

R902060055    A2FE56/61W-VZL020

R902077378    A2FE56/61W-VZL181-K

R902021511    A2FE107/61W-VZL181-K *G*

R902060064    A2FE45/61W-VZL181-K

R902078513    A2FE56/61W-VZL181-K

R902021516    A2FE28/61W-VAL190J

R902060065    A2FE63/61W-VAL180-S

R902078519    A2FE160/61W-VZL181-K

R902021518    A2FE28/61W-VAL192J-K

R902060067    A2FE63/61W-VAL181-SK

R902078580    A2FE63/61W-VZL181-K

R902021740    A2FE45/61W-VZL106-S

R902060214    A2FE125/61W-VZL181-SK

R902078582    A2FE107/61W-VZL181-K

R902021751    A2FE56/61W-VAL106-S

R902060222    A2FE80/61W-VAL026D

R902078584    A2FE107/61W-XAL190J-S

R902021766   A2FE56/61W-VAL100-S

R902060224    A2FE80/61W-VAL026D-K

R902078996    A2FE45/61W-VZL181-K

R902021816    A2FE45/61W-VZL181-K

R902060230    A2FE63/61W-VAL106-S

R902080550    A2FE90/61W-VAL181-K

R902021818    A2FE80/61W-VAL181-K *G*

R902060244    A2FE90/61W-VAL190JD

R902080585    A2FE180/61W-VZL190J-S

R902021986    A2FE180/61W-VAL181-K

R902060246    A2FE90/61W-VAL192JD-K

R902080587    A2FE180/61W-VZL191J-SK

R902024546    A2FE32/61W-VAL191J-K

R902060292    A2FE125/61W-VZL181-K

R902080603    A2FE63/61W-VZL181-K

R902024547    A2FE45/61W-VZL192J-K

R902060294    A2FE90/61W-VAL181-K

R902080775   A2FE125/61W-VAL100-S

R902024565    A2FE45/61W-VZL190J

R902060339    A2FE107/61W-VZL171-SK

R902080882    A2FE32/61W-VAL181-K

R902024655    A2FE28/61W-VAL530

R902060454    A2FE125/61W-VZL180-S

R902080886    A2FE63/61W-VZL027-S

R902024673    A2FE125/61W-VZL190J

R902060456    A2FE125/61W-VZL181-SK

R902080969    A2FE63/61W-VZL020

R902024675    A2FE125/61W-VZL192J-K

R902060457    A2FE107/61W-VZL170-S

R902082130    A2FE180/61W-VAL100-S

R902024790    A2FE160/61W-VZL190J

R902060494    A2FE80/61W-VZL181-K

R902082143    A2FE80/61W-VAL181-K

R902024792    A2FE160/61W-VZL191J-K

R902060497    A2FE63/61W-VZL181-K

R902082148    A2FE160/61W-VZL181-K

R902024968    A2FE63/61W-VZL010

R902060499    A2FE125/61W-VZL171-K

R902082333    A2FE45/61W-VZL190J

R902027177    A2FE125/61W-VZL191J-K

R902063502    A2FE90/61W-VZL181-K

R902082336    A2FE56/61W-VZL190J *Z*

R902028891    A2FE45/61W-VZL026

R902063504    A2FE180/61W-VZL181-K

R902082447    A2FE107/61W-VZL180-S

R902030719    A2FE107/61W-VAL027

R902063698    A2FE56/61W-VZL027D-S

R902082449    A2FE107/61W-VZL181-SK

R902030956    A2FE180/61W-VAL190J

R902063700    A2FE56/61W-VZL027D-SK

R902082452    A2FE125/61W-VZL181-SK

R902030958    A2FE180/61W-VAL192J-K

R902063867    A2FE63/61W-VZL181-K

R902082453    A2FE56/61W-VZL180-S

R902031566    A2FE107/61W-VZL170

R902063893    A2FE80/61W-VAL181-K

R902082455    A2FE56/61W-VZL181-SK

R902031568    A2FE107/61W-VZL171-K

R902063895    A2FE90/61W-VAL181-K

R902082457    A2FE63/61W-VZL181-K

R902031796    A2FE90/61W-VAL191J-K

R902063918    A2FE28/61W-VAL181-K

R902084150    A2FE125/61W-VAL181-K

R902031806    A2FE56/61W-VZL180J

R902063950    A2FE63/61W-VZL181-K

R902084184    A2FE80/61W-VALXXXF-S

R902031808    A2FE56/61W-VZL181J-K

R902063959    A2FE32/61W-VAL181-K

R902084185    A2FE80/61W-VALXXXF-SK

R902031815    A2FE125/61W-VZL170

R902063962    A2FE125/61W-VZL181-K

R902084211    A2FE56/61W-VZL181-K

R902031817    A2FE125/61W-VZL171-K

R902063976    A2FE63/61W-VZL181-K

R902084279    A2FE125/61W-VZL192J-SK

R902033082    A2FE63/61W-VZL010J

R902063978    A2FE107/61W-VZL181-K

R902084286    A2FE160/61W-VZL192J-K

R902033154    A2FE56/61W-VAL106

R902063980    A2FE160/61W-VAL181-K

R902084377    A2FE160/61W-VZL181-K

R902036621    A2FE45/61W-VZL100D-S

R902065579    A2FE90/61W-XAL100J-S

R902084414    A2FE80/61W-VZL106


【Close】


Hydraulic Pump, Piston Pump, Vickers Pump, Denison Vane Pump, Vane Pump Cartridge
Since 1990, Xian Victory Hydraulic Pump Manufacturing Ltd, Copyright © 1990-2020 All Rights Reserved
